Product Description

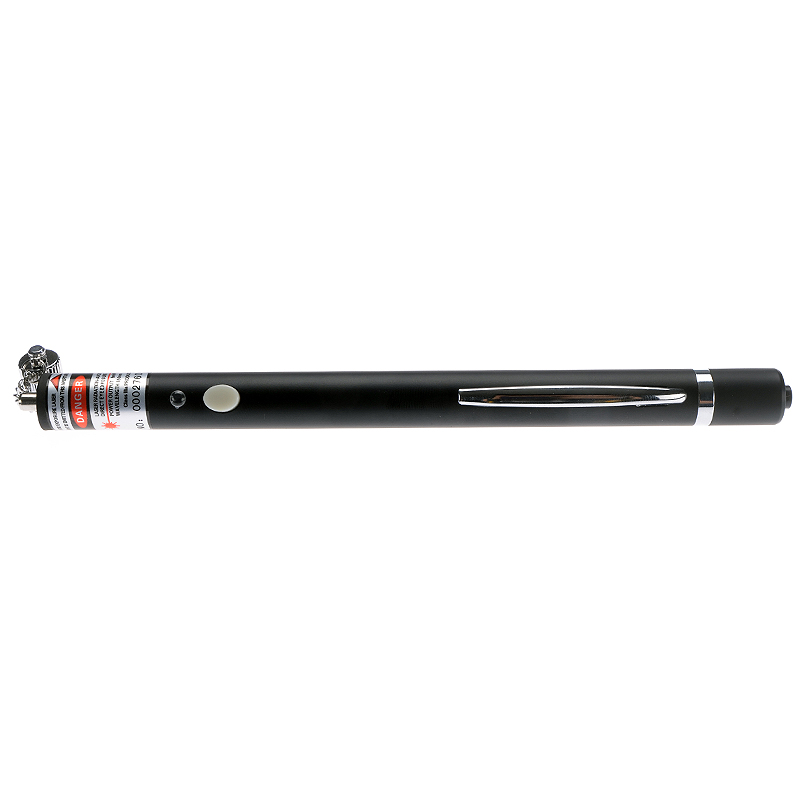

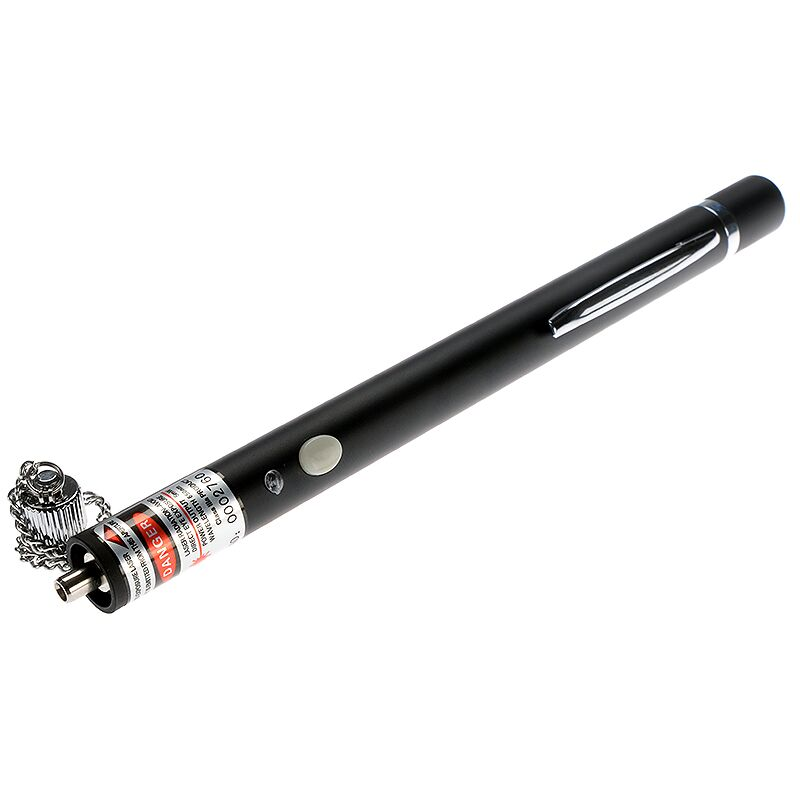

The Pen-type VFL is specifically designed for field technicians who need an efficient and economical tool for fiber tracing, fibre routing and continuity testing in optical networks. It locates breakpoints, poor connections, bends or cracks in fibre optic cables, can locate faults in an OTDR dead zone and is used for end-to-end visual fibre identification.
The Visual Fault Locator shines visible 650nm laser light into the fibre. When the light encounters a break or sharp bend, it scatters and the scattered light can be observed coming out of the cable.
Features
2.5mm universal connector
Operates in either CW or pulsed mode with constant output power
Low battery warning
Long battery life (up to 60 hours)
Drop and dust proof laser head design
Grounded laser housing design prevents ESD damage
Portable and rugged
Applications
Maintenance in telecom, CATV
Test Lab of optical fibers
Fiber routing and continuity checking in optical networks
Other fiber optic measurements
Specification
| Model | ||||
| Central Wavelength | 650nm±10nm(635nm is available on request) | |||
| Emitter Type | FP-LD | |||
| Output Power | 5mw | 10mw | 20mw | 30mw |
| Laser Range | 5KM | 10KM | 20KM | 30KM |
| Optical Connector | 2.5mm Universal Connector | |||
| Operating Model | Both CW and Pulse Available | |||
| Pulse Frequency | 2Hz to 3Hz/9Hz | |||
| Power Supply | 2AA Alkaline Batteries | |||
| Battery | LR6 AA Alkaline Battery | |||
| Operating Temp. | -20℃ ~ 60℃ | |||
| Storage Temp. | -40℃ ~ 85℃ | |||
| Dimension | 13x167mm | |||
| Weight | 50g(Without Battery) | |||
