Product Description

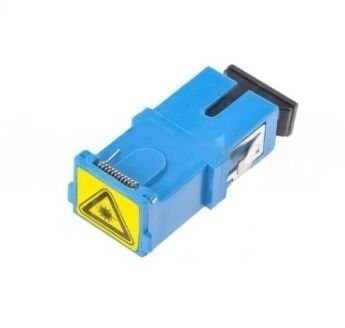

SC UPC Shutter Fiber Adapter SM SX without Flange Unlike standard SC adapters, this shuttered SC simplex adapter features an automatic shutter to protect against dust and other contaminants and prevent eye exposure to lasers. The shuttered SC adapter meets the growing need for eye safety and connector cleanliness in today’s networking and telecommunications platforms.
Features
Fast and easy connection
Zirconia ceramic alignment sleeve
Low insertion loss and high return loss
Good interchangeability and repeatability
Anti-dust and prevents harmful light emissions
Applications
Active device termination;
Telecommunication networks;
Metro networks;
Local Area Networks (LANs);
Wide Area Networks (WANs) ;
Premise installations.
Specification
| Type | SC/UPC to SC/UPC |
| Mode | Singlemode |
| Fiber Count | Simplex |
| Insertion Loss(Typically) | ≤0.2dB |
| Mating Durability | Plug and Unplug 1,000 times |
| Operating Temp. | -25 ~ +70℃ |
