Product Description

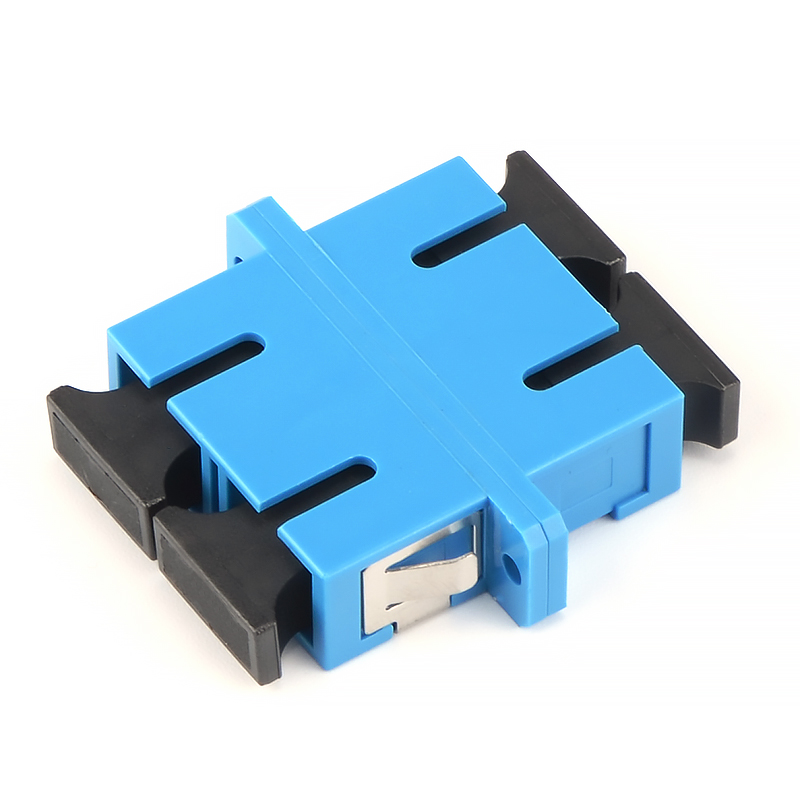

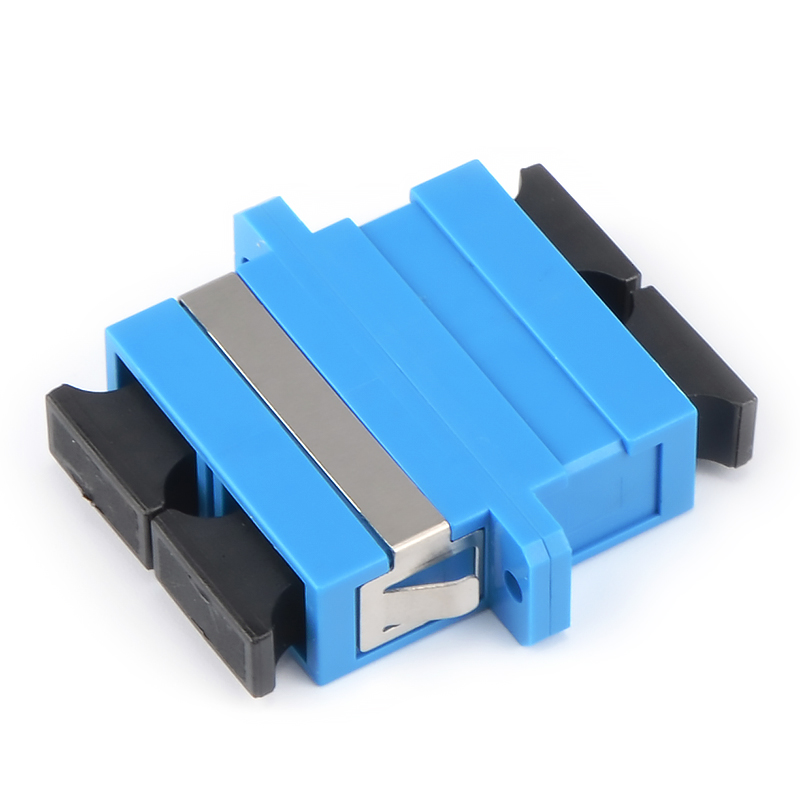

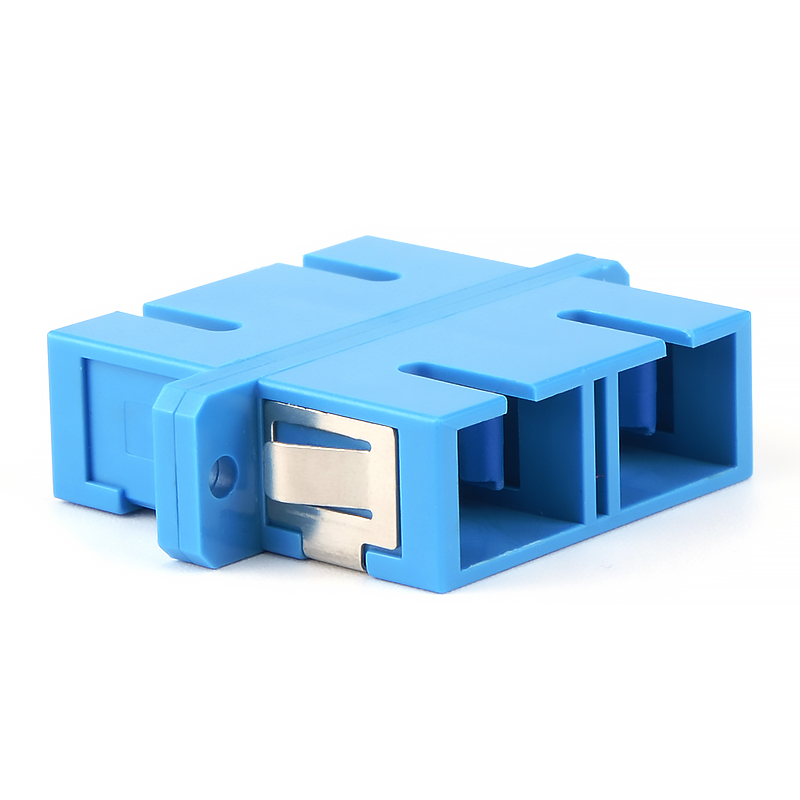

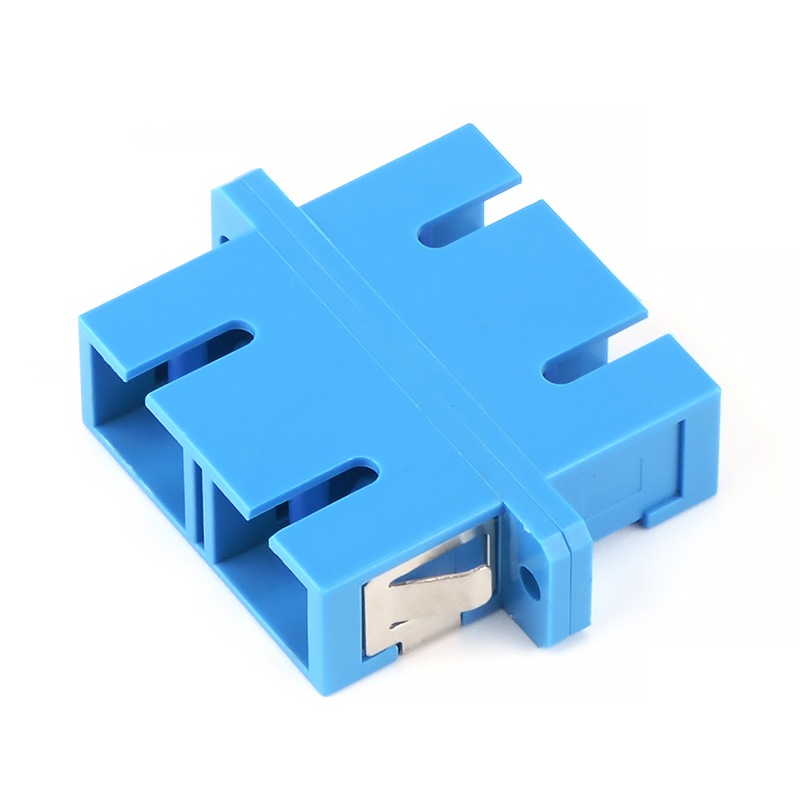

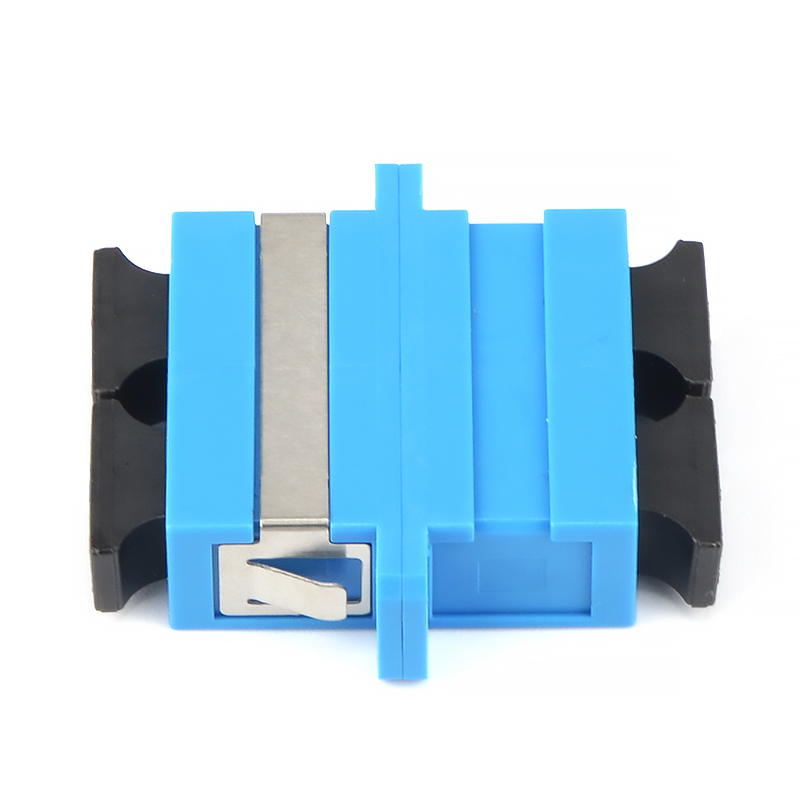

SC single-mode duplex fiber adapters are manufactured from a polymer material. Each SC duplex fiber adapter can support two optical ports. It consists of a zirconia ceramic alignment sleeve that can provide precise alignment with the SC fiber optic connector to minimize the amount of optical loss.
Features
Low Insertion Loss and High Return Loss
High Precision Alignment Sleeve
Good Temp characteristic and repeatability
Applications
Telecommunications Networks
CATV, LAN, MAN, and WAN Application
FTTH
Premises Distribution
Specification
| Type | SC to SC |
| Mode | Single Mode(UPC) |
| Fiber Count | Duplex |
| Insertion Loss(Typically) | ≤0.2dB |
| Mating Durability | Plug and Unplug 1,000 times |
| Operating Temp. | -25 ~ +70℃ |
