Product Description

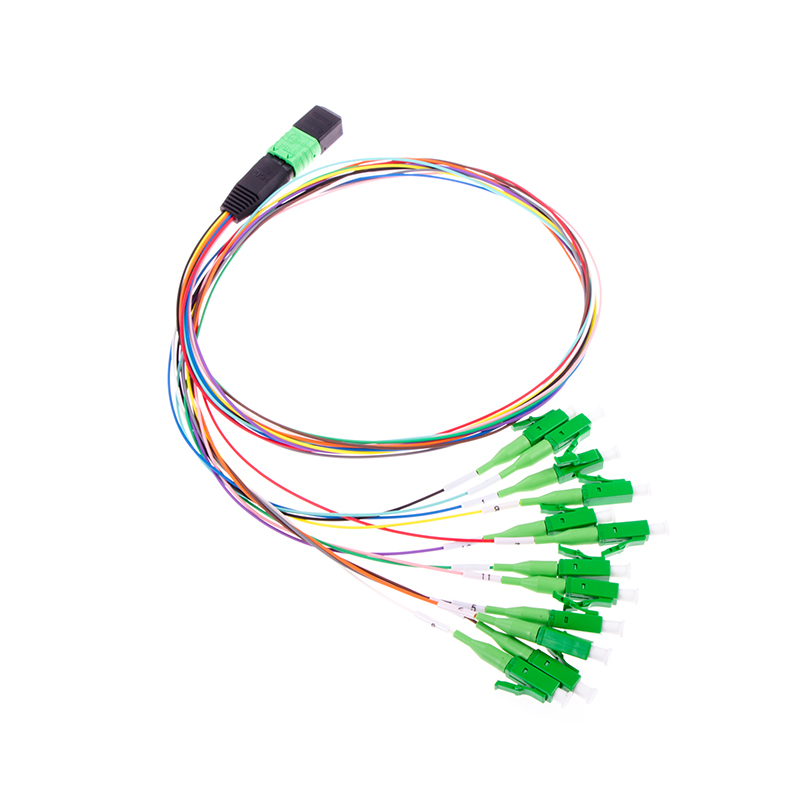

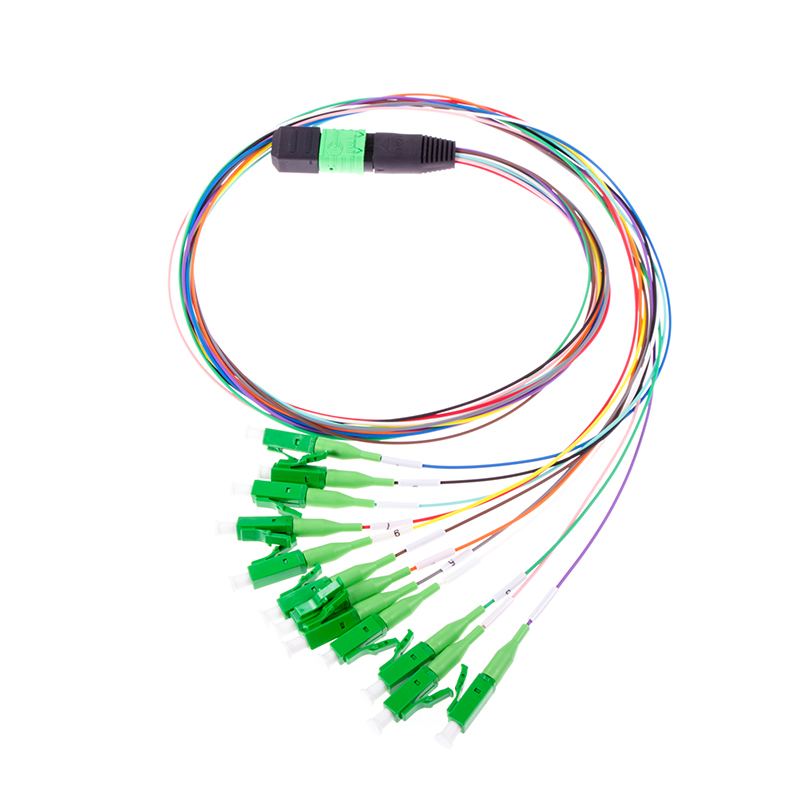

MPO/MTP to LCA SM 12Fibers 0.9mm Ribbon Fiber Patch Cord is a high performance cable for data centre applications with superior optical and mechanical properties. Ensures low insertion loss and power dissipation in tight power budgets and high speed network environments.
Features
MPO- LC Connectors
4Fibers, 8Fibers, 12Fibers, or 24Fibers version on request;
UPC or APC Polish available
Any other connector type at another side upon request
Fan-out on request
100% factory test(Insertion loss & return loss)
Applications
Active Device Termination
Telecommunication Networks
Local Area Networks
Data Processing Networks
Wide Area Networks
Precise Installations
Specification
| Connector | MPO/MTP to LCA | Jacket Diameter | 0.9mm |
| Fiber Mode | 9/125um SM | Jacket Color | 12Colors |
| Polish Type | APC | Wavelength | 850/1300nm |
| Fiber Type | 12Fibres | Jacket Material | LSZH/PVC/OFNP |
| Insertion Loss | ≤0.35dB(Elite MPO/MTP) ≤0.2dB(LCA) |
Return Loss | ≥30dB |
| Operating Temp. | -40~75℃ | Storage Temp. | -45~85℃ |
