Product Description

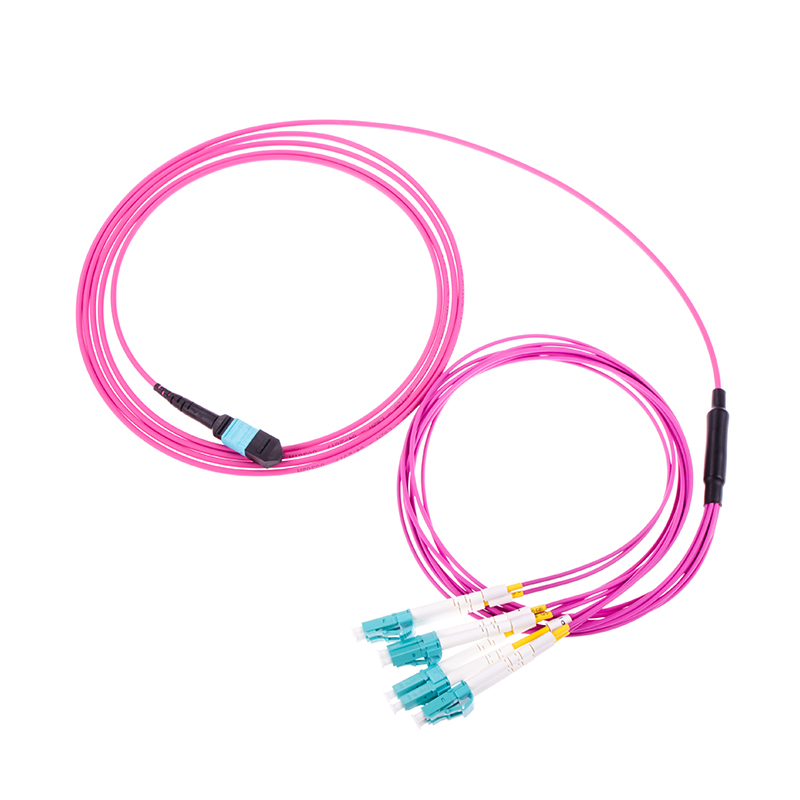

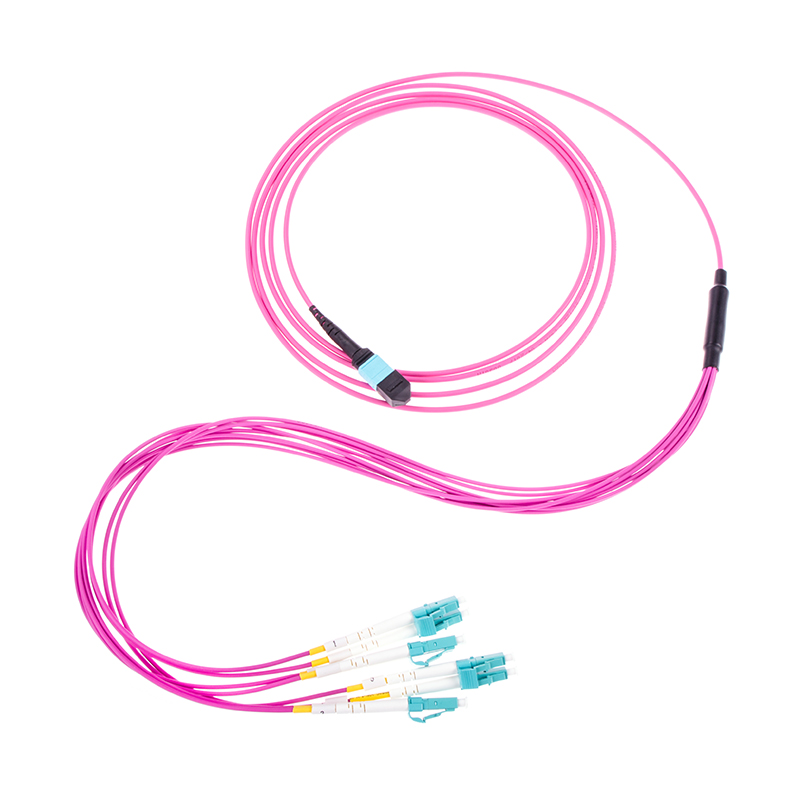

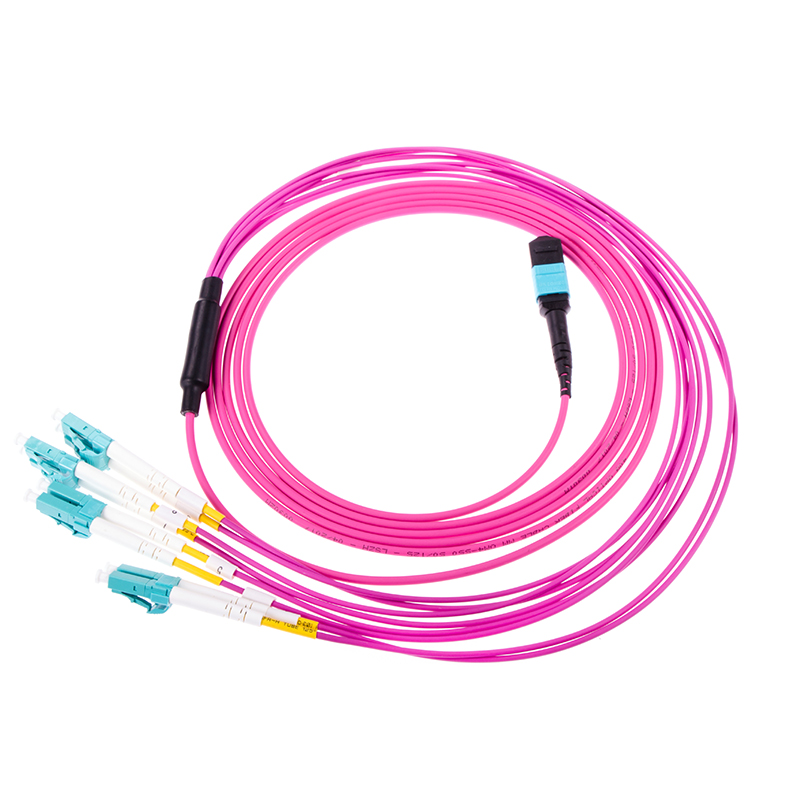

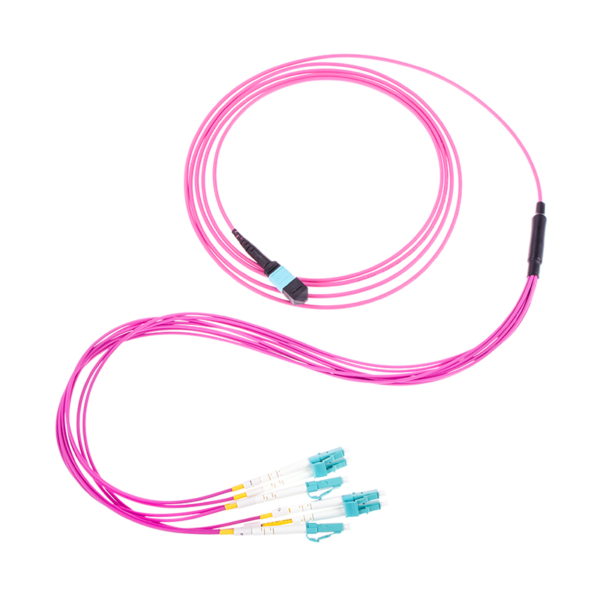

MPO/MTP to LC UPC 4 Duplex OM4 8 Fiber Breakout Fiber Patch Cable. Its fan-out assemblies with LC connectors are ideal for connections within a rack or wall-mounted enclosure using single-fiber connectors. They are fully compatible with Senko MPO or US Conec MTP products and are factory-terminated and tested.
Features
MPO to LC Connectors
4Fibers, 8Fibers, 12Fibers, or 24Fibers version on request;
Any other connector type at another side upon request
Fan-out on request
100% factory test(Insertion loss & return loss)
Compact design
Applications
Active Device Termination
Telecommunication Networks
Local Area Networks
Data Processing Networks
Wide Area Networks
Specification
| Connector | MPO to LC | Jacket Diameter | 2.0mm |
| Fiber Mode | OM4 | Jacket Color | Aqua/Magenta |
| Polish Type | UPC | Wavelength | 850/1300nm |
| Fiber Type | 8Fibres | Jacket Material | LSZH/PVC/OFNP |
| Insertion Loss | ≤0.35dB(Elite MPO/MTP) ≤0.2dB(LC) |
Return Loss | ≥50dB |
| Operating Temp. | -40~75℃ | Storage Temp. | -45~85℃ |
