Product Description

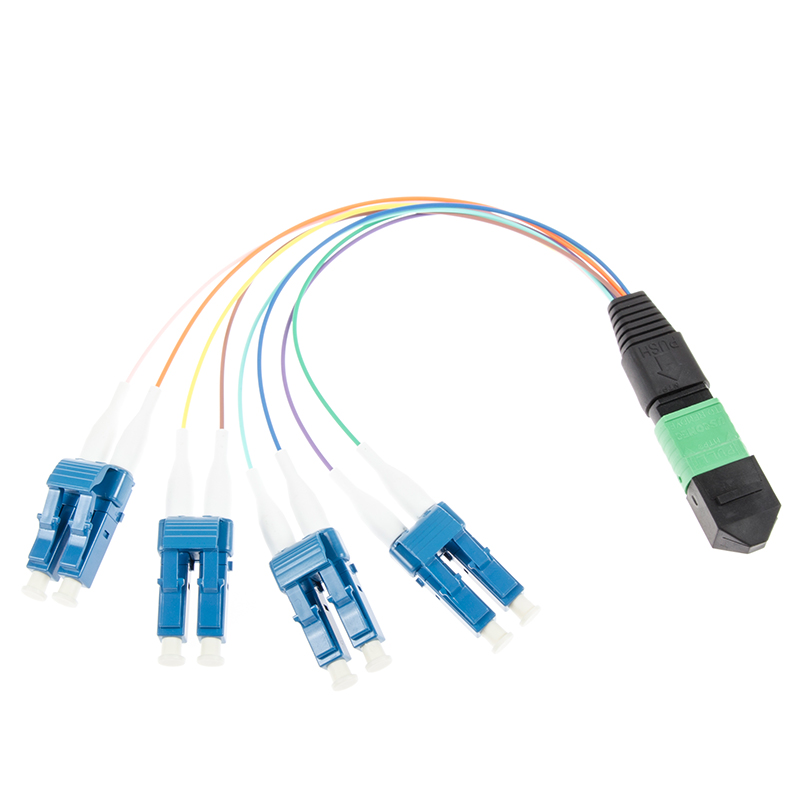

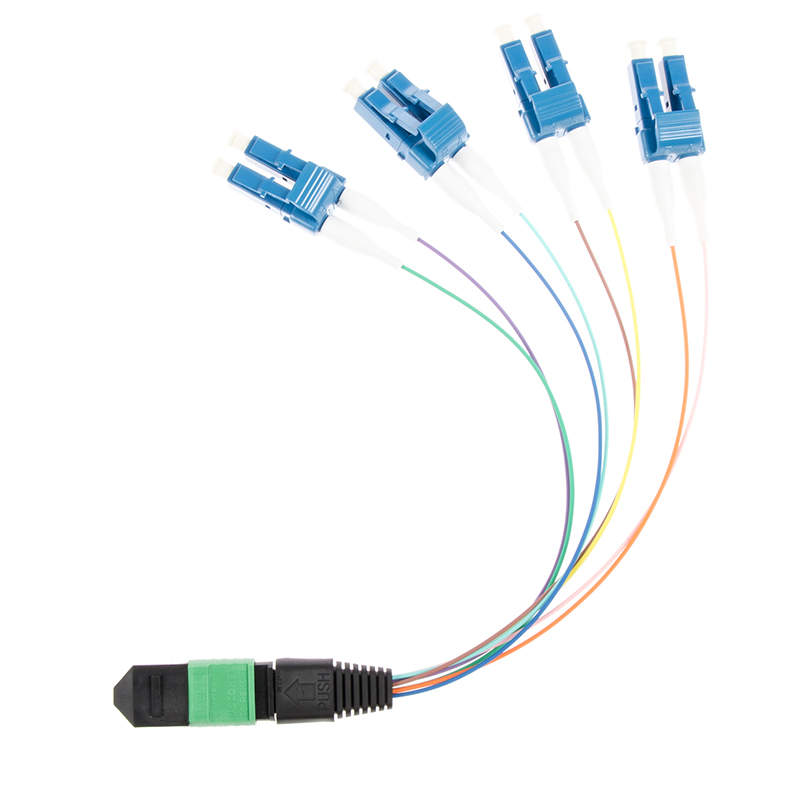

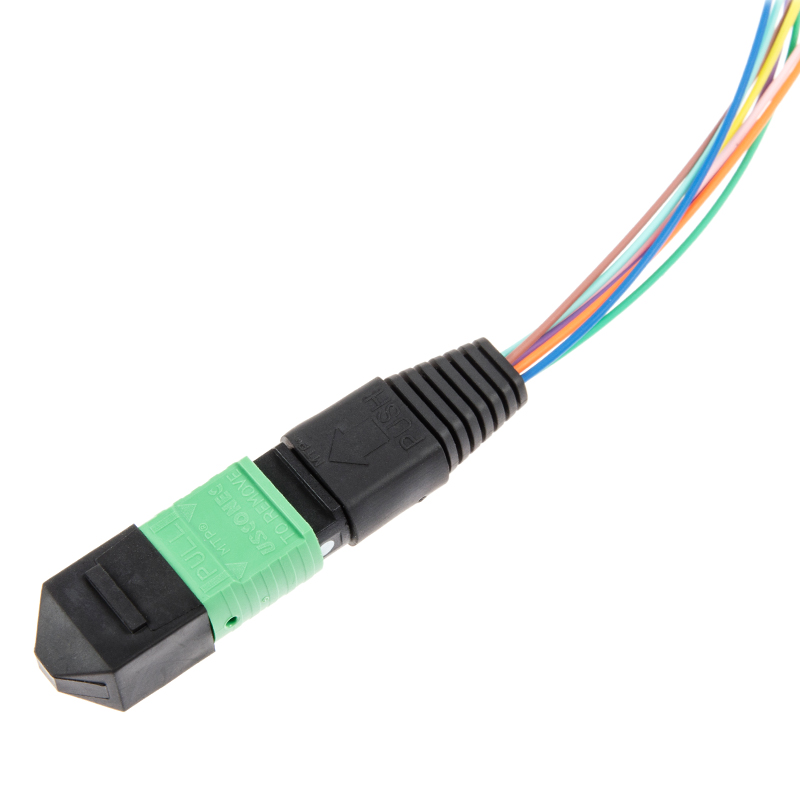

MPO/MTP to LC SM 8Fibers 0.9mm Harness Cable Ribbon Fiber Patch Cord is a high-performance cable for data centre applications with superior optical and mechanical properties. Ensures low insertion loss and power dissipation in tight power budgets and high-speed network environments.
Features
MPO- LC Connectors
4Fibers, 8Fibers, 12Fibers, or 24Fibers version on request;
UPC or APC Polish available
Any other connector type at another side upon request
Fan-out on request
100% factory test(Insertion loss & return loss)
Applications
Active Device Termination
Telecommunication Networks
Local Area Networks
Data Processing Networks
Wide Area Networks
Precise Installations
Specification
| Connector | MTP to LC | Jacket Diameter | 0.9mm |
| Fiber Mode | 9/125um SM | Jacket Color | 8Colors |
| Polish Type | UPC to APC | Wavelength | 1310/1550nm |
| Fiber Type | 8Fibres | Jacket Material | LSZH/PVC/OFNP |
| Insertion Loss | ≤0.35dB(Elite MPO/MTP) ≤0.2dB(LC) |
Return Loss | ≥50dB |
| Operating Temp. | -40~75℃ | Storage Temp. | -45~85℃ |
