Product Description:

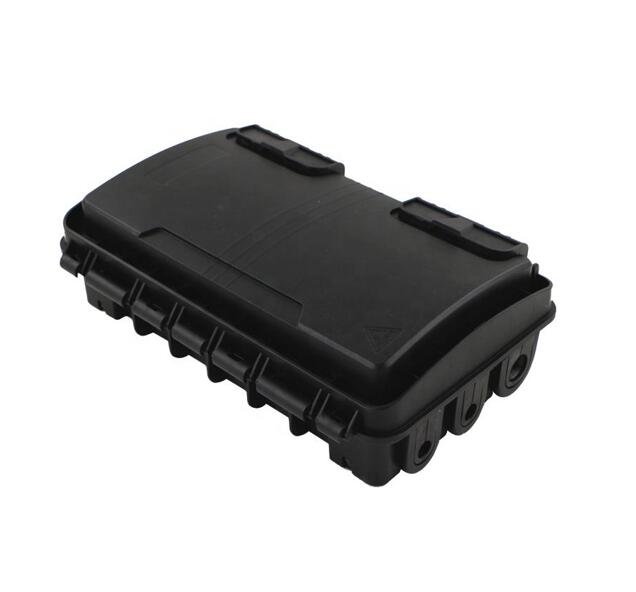

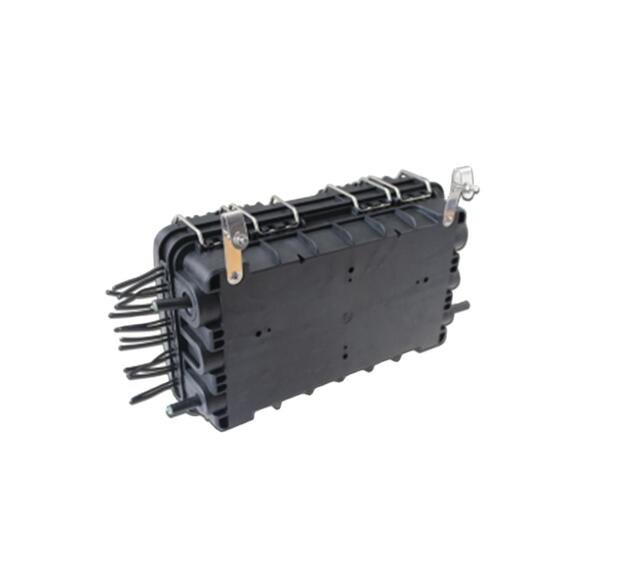

The Fiber Access Terminal Closure is specifically designed for aerial stand-mount FTTH drop locations where drop cables are spliced to distribution cables.
It features a flexible configuration that supports 3 cables in and 3 cables out, accommodating two 1×8 PLC splitter LGX modules or steel tube types.

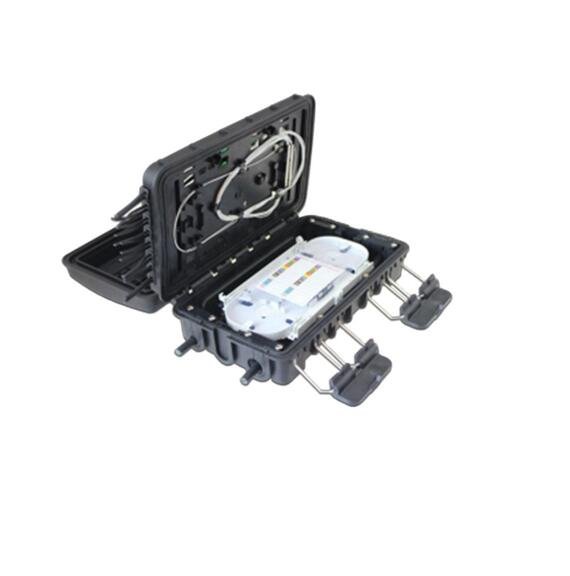

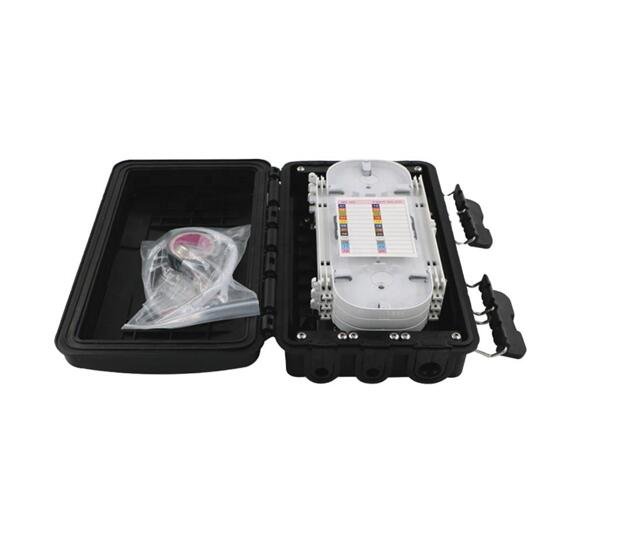

The closure includes a unique flip board with a flip angle of ≥ 180°, clearly separating the fusion and distribution areas to minimize cable crossing.
Additionally, the design allows fiber optic cables to enter and exit the box without cutting, providing convenience and versatility.
Features
Anti-UV, Impact-resistant, and Waterproof
Clear Separation of Fusion and Distribution Areas
Cable Entry and Exit Without Cutting
Applications
Aerial installations
FTTx networks
Telecommunications
Specifications
| Max Capacity | Single: 96 Cores |
| Material | PP+GF |
| Dimension(mm) | 285*175*90 |
| Inlets/Outlets | 3/3 |
| Installation | Pole/Aerial/Manhole |
| Cable Port | 2PCS 8-20mm Round Ports 4PCS 5-16mm Round Cable |
| Diameter of Fiber Optic Cable | Φ7mm~φ18mm |
| Number of Trays | 4 |
| Capacity of Tray | 24F |
| Weight | 1.45KG |
| Color | Black |
| Waterproof Level | IP65 |
Technical Parameter
Optical fiber radius of curvature: ≥40mm Splice tray additional loss: ≤0.1dB
Temperature range: -40°C ~ +60°C
Anti side pressure: ≥2000N/10cm Impact resistance: ≥20N.m
