Product Description

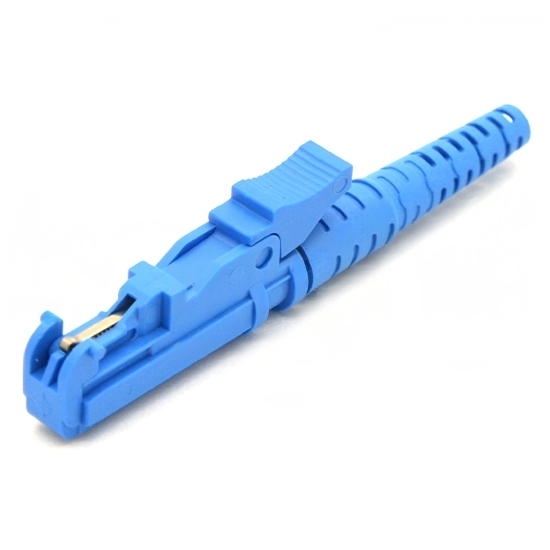

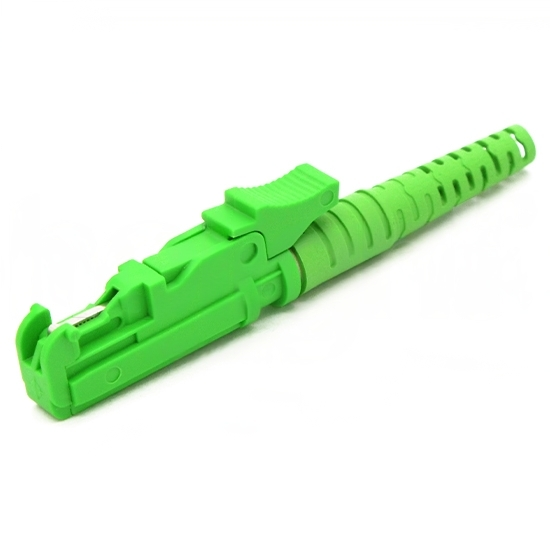

The E2000 fiber optic connector has a push-pull coupling mechanism with an automatic metal shutter in the connector and adapter to protect against dust and laser beams. One-piece design for easy and fast termination, used in high-security and high-performance applications.
Features
SM and MM Connector can be used interchangeably
High interchangeability
Precision anti-rotation key and corrosion-resistant body
Free-floating ceramic ferrule
Low insertion loss
Applications
WANs
LANs
CATV and Metro Network
FTTx
Specification
| Type | E2000 |
| Housing | SM: Blue; MM: Beige; APC:Green |
| Environment Performance | RoHS Compliant, Meets UL94-V0 Flammability Requirements |
| Optical Performance | Meets Telcordia GR-326-Core issue;
IL(typically): SM＜0.3dB,RL(typically):SM＞50dB |
| Mechanical Performance | Connection Durability: 500 Mating cycles;
Connector Repeatability: MM＜0.2dB; SM＜0.1dB |
