Product Description

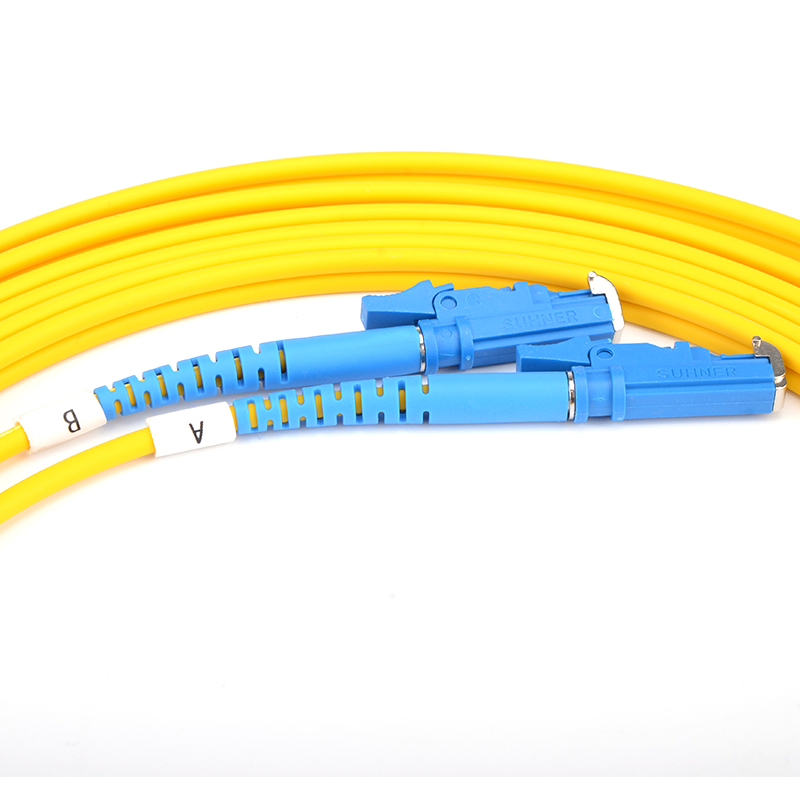

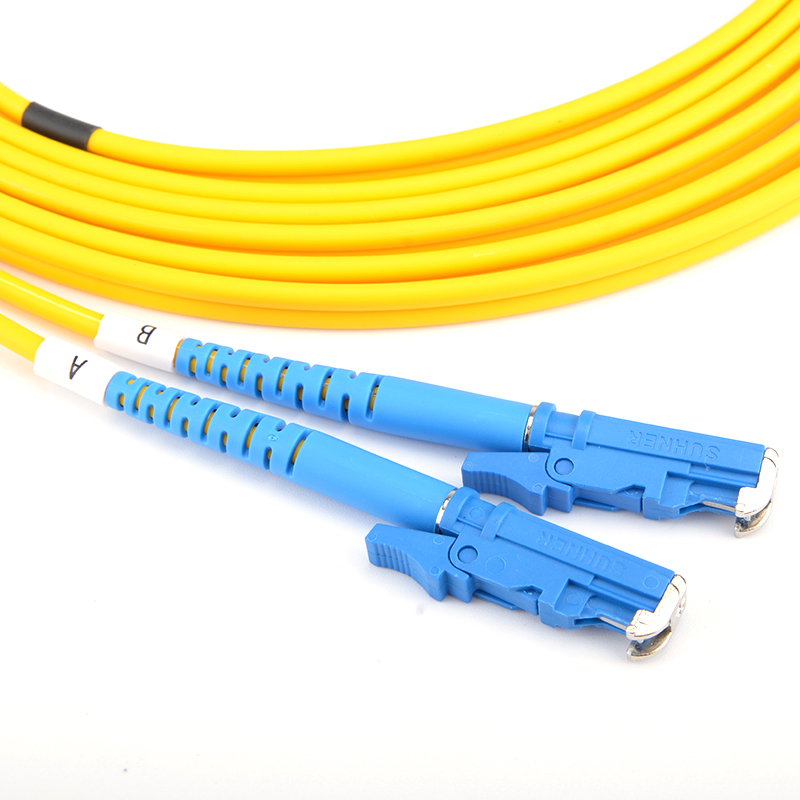

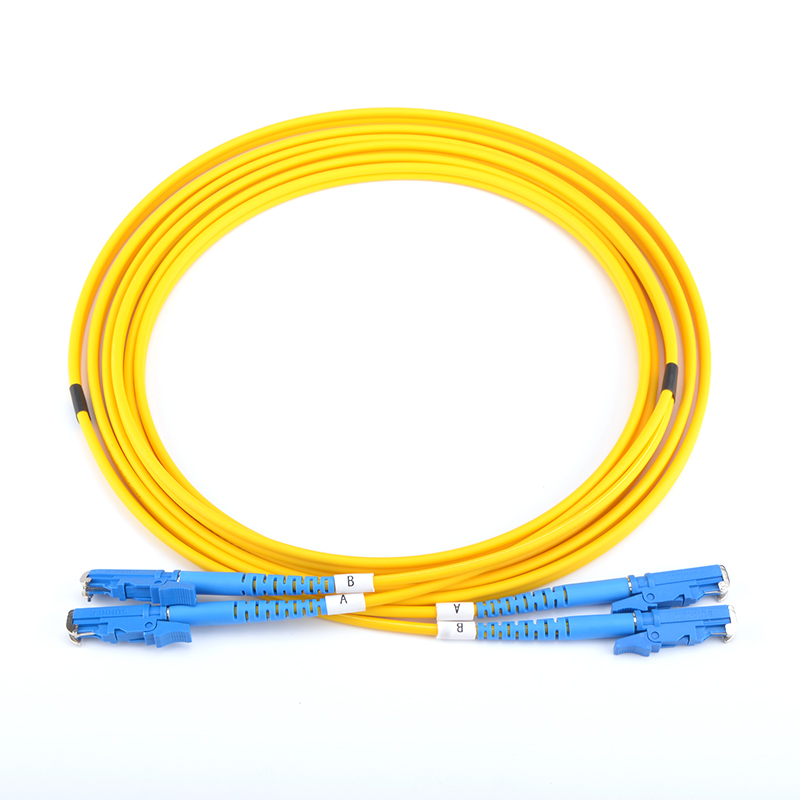

E2000 to E2000 Single Mode Duplex 9/125um OS2 Fiber Patch Cord can meet RoHS Compliant, and all cables are 100% tested for insertion loss/return loss to ensure high quality, it is very cost-effective for network cabling. We offer a diverse range of single-fiber ferrule connectors, which are manufactured with factory mounting and polishing techniques to assure high transmission quality.
Features
Conform to IEC, EIA-TIA, and Telcordia Performance
All Assemblies are machine polished providing highest quality
Available in custom length
RoHS compliant, Materials conflict compliant
Applications
Telecommunications Networks: Ideal for long-distance communication.
Data Centers: Ensures high-speed data transmission for critical operations.
Enterprise Networks: Reliable connectivity for corporate environments.
Fiber-to-the-Home (FTTH): Perfect for residential high-speed internet installations.
Broadcasting and CATV: Ensures seamless data transfer for media application
Specifications
| Connector | E2000 to E2000 | Jacket OD | 2.0mm/3.0mm |
| Fiber Mode | 9/125um | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | LSZH/PVC/OFNP |
| Insertion Loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return Loss | ≥60dB | Vibration | ≤0.2dB |
| Operating Temp. | -40 ~ +75℃ | Storage Temp. | -45 ~ +85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G.652D/ G.657A1/ G.657A2 |
