Product Description

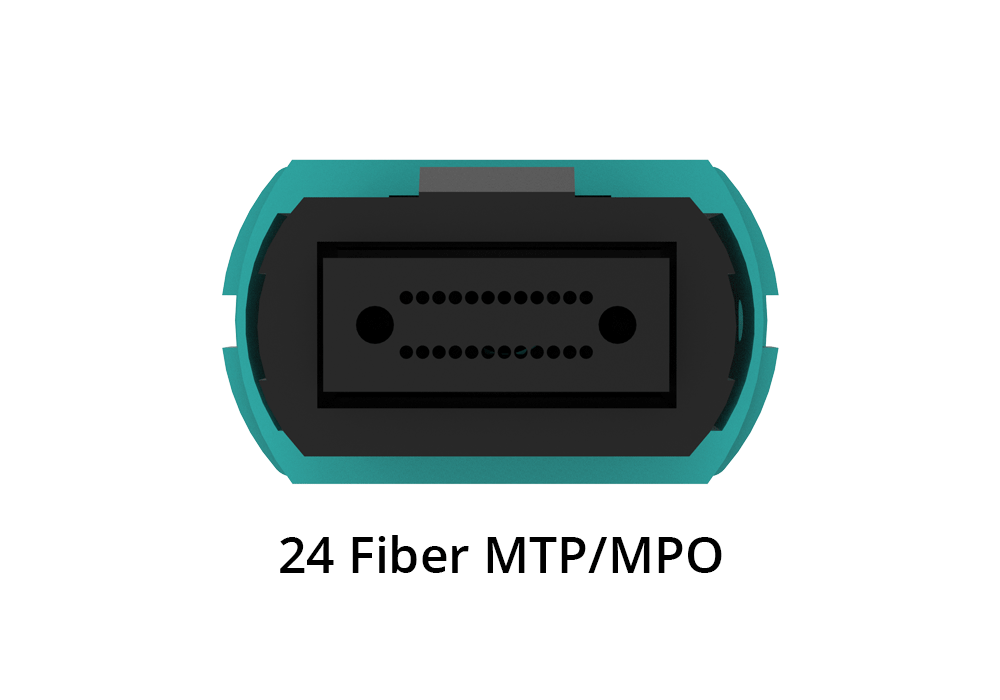

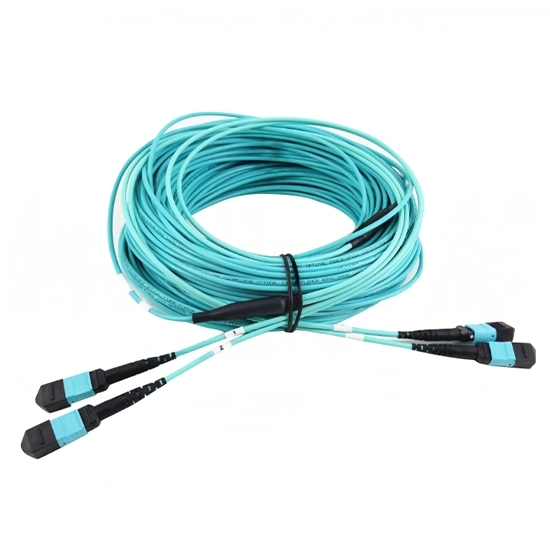

MTP®/MPO 24 Fiber Ferrule Cable Assemblies are designed for cable infrastructures currently in use or to be upgraded to parallel optical 40/100G protocols such as 100G BASE-SR10 or 40G BASE-SR4. The assemblies are built using a 24-fibre ferrule interface, MTP®/MPO connectors that can be used directly with CFP/CXP 100G transceivers or, when used with transition modules/cables, can provide 40/100G parallel transceivers or legacy non-parallel optics 4/8/10/16G Ethernet/Fibre Channel protocol networks.
Features
All assemblies are factory tested and come with a test certificate
All assemblies are machine-polished, providing the highest quality
High-quality MPO-24 connectors guaranteed by the 3D interferometer
Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
Applications
Data Communication Network
Optical System Access Network
Parallel optics:100Gbps protocol
Telecommunications Network
| Specification | MM Low Loss
Multimode MT Ferrule |
Standard Multimode MT Ferrule |
SM Low Loss Single-mode MT Ferrule |
Standard MM MT Ferrule |
| Insertion Loss | Typically＜0.3dB; Max＜0.5dB |
Typically＜0.3dB Max＜0.7dB |
Typically＜0.3dB
Max＜0.5dB |
Typically＜0.3dB
Max＜0.7dB |
| Return Loss | ＞20dB | ＞20dB | PC≥45dB; APC≥60dB | PC≥45dB; APC≥60dB |
